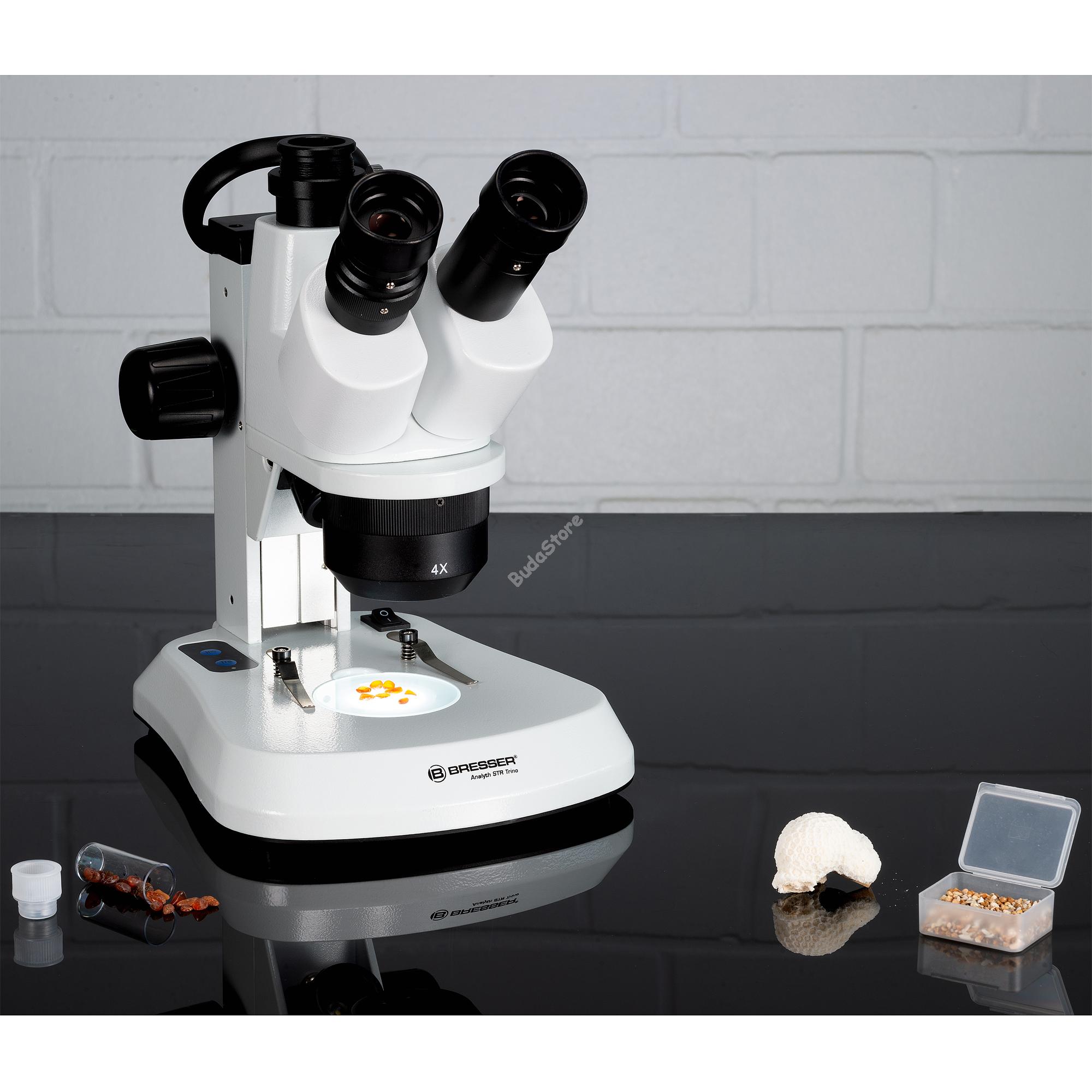

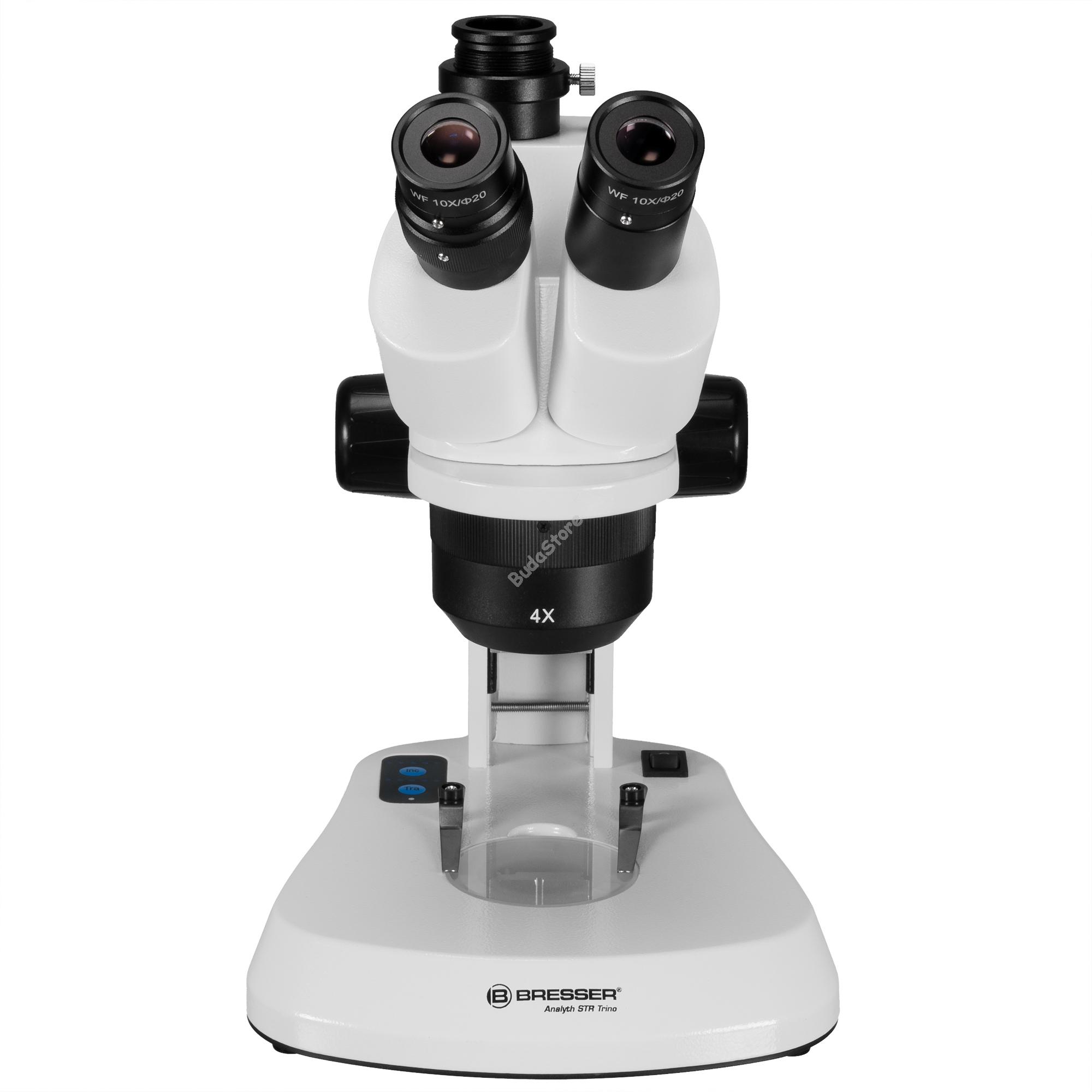

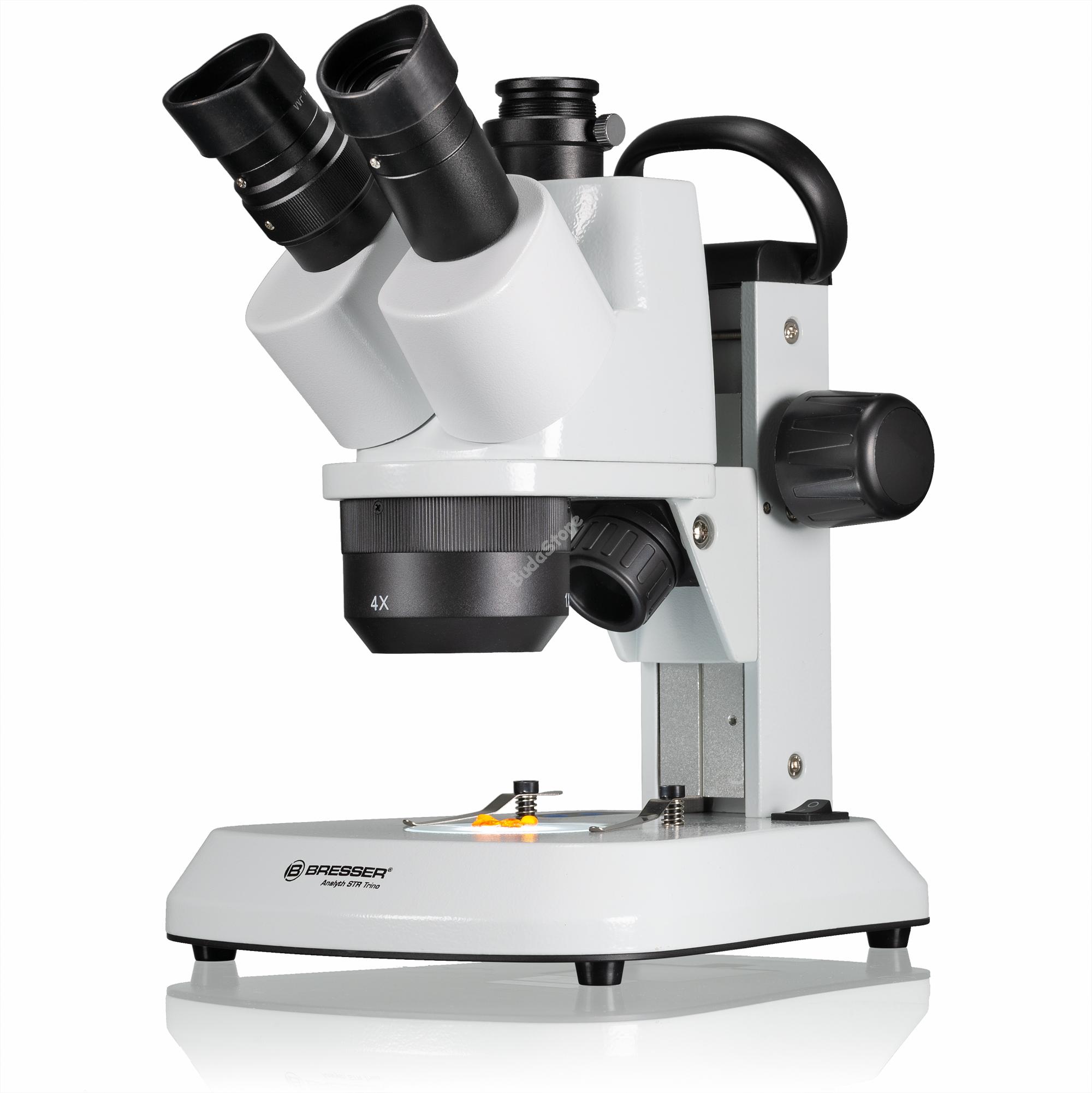

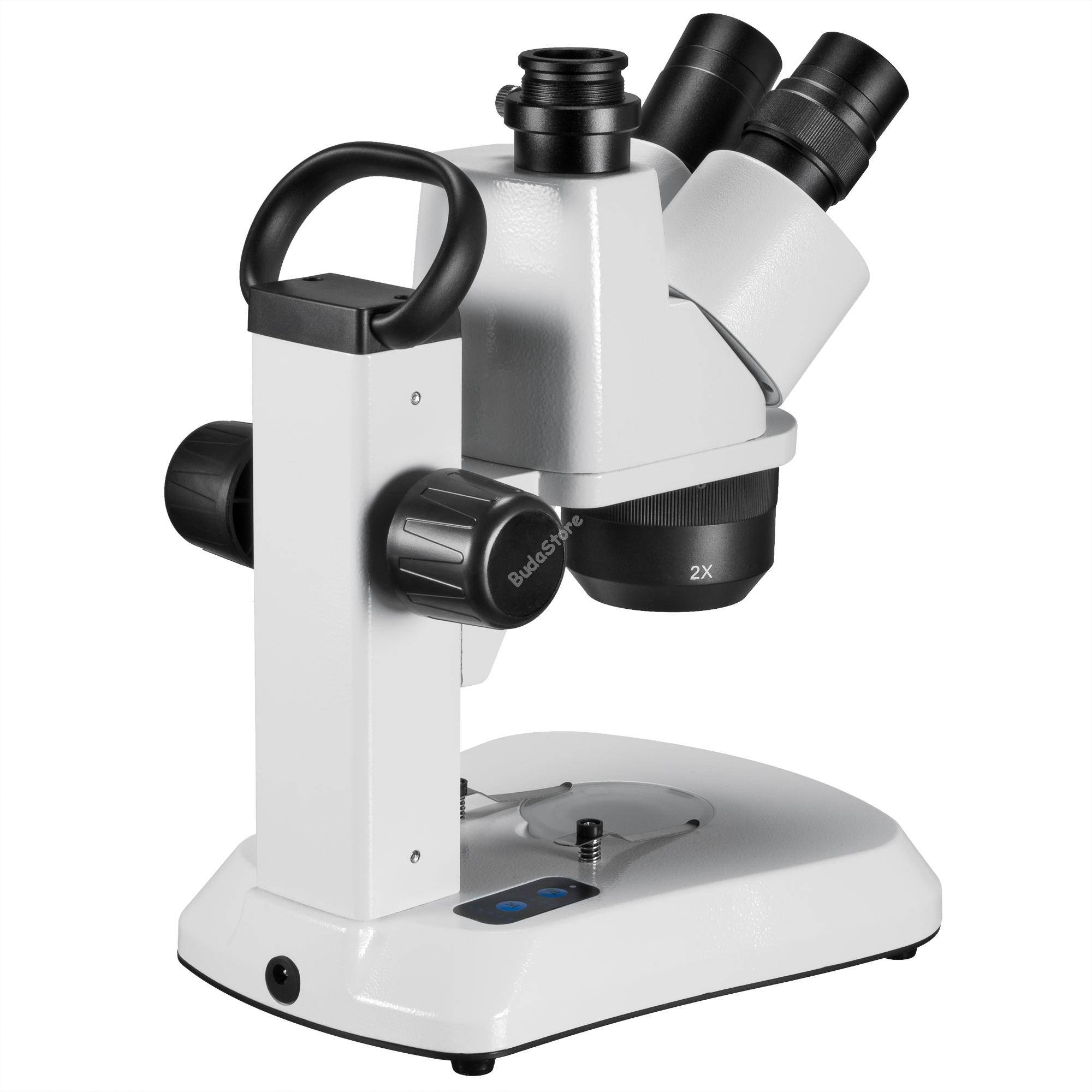

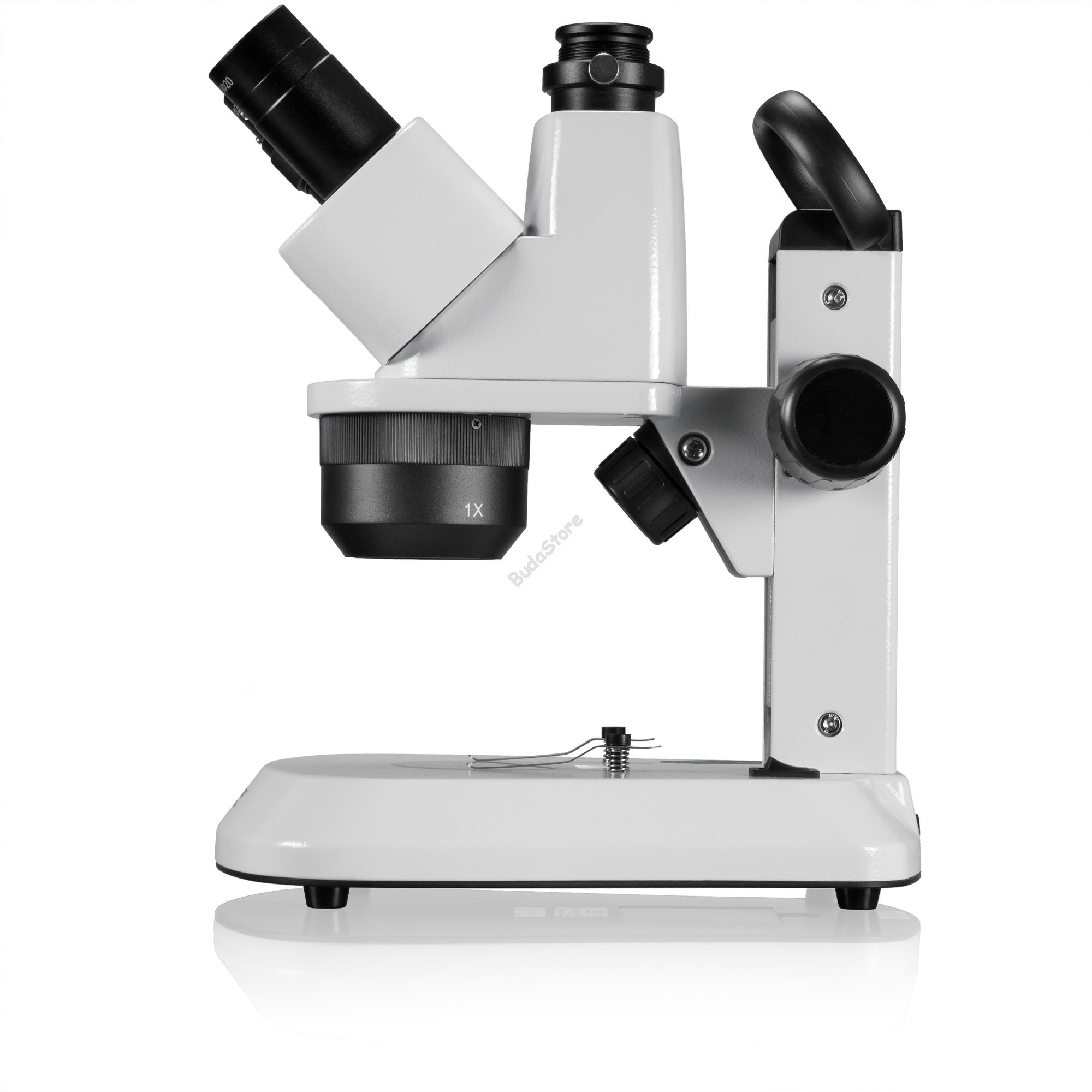

The Analyth STR Trino has 3 different objective magnifications that can be changed simply by turning the objective. This means that the magnifications 10x, 20x and 40x can be changed directly. The stereo design shows structured objects particularly vividly and three-dimensionally. The low,10x initial magnification is particularly suitable for working with children. Objects up to 20mm in size can be viewed in their entirety. The Analyth STR is therefore particularly flexible to use. It is suitable for insects, plants, minerals and much more and has its areas of application in hobby, school and work. The stereomicroscope can be used for quality control, in horticulture and agriculture, for hydrology and much more. The trinocular tube enables the comfortable connection of a camera. The microscope is compatible (depending on the adapter) for microscope cameras, SLR and system cameras. Ask us which adapter you need. The interpupillary distance and dioptric compensation are individually adjustable. The eyepieces have a large field of view of 20mm. They are equipped with removable rubber eyecups and secured against removal. The microscope can be powered either with the mains adapter or with 3 batteries (not included). This means that it can also be used on the move, for example outside in the garden or on an excursion.

Properties:

• Microscope with 3 pairs of objectives, objective magnifications 1x 2x 4x
• Wide field eyepieces with eyecups and 20mm field of view
• Trinocular tube with 23.2mm mount
• Bright, economical LED illumination
• Illumination for incident and transmitted light can be switched separately
• Dimmer via membrane keys with status display
• Two specimen plates (black/white or glass matt), with specimen clips
• Dust cover
• Operating instructions
• Stand with LED illumination, separately or jointly switchable or dimmable

Scope of delivery:

• Microscope with 3 magnifications, 10x 20x 40x
• Trinocular tube

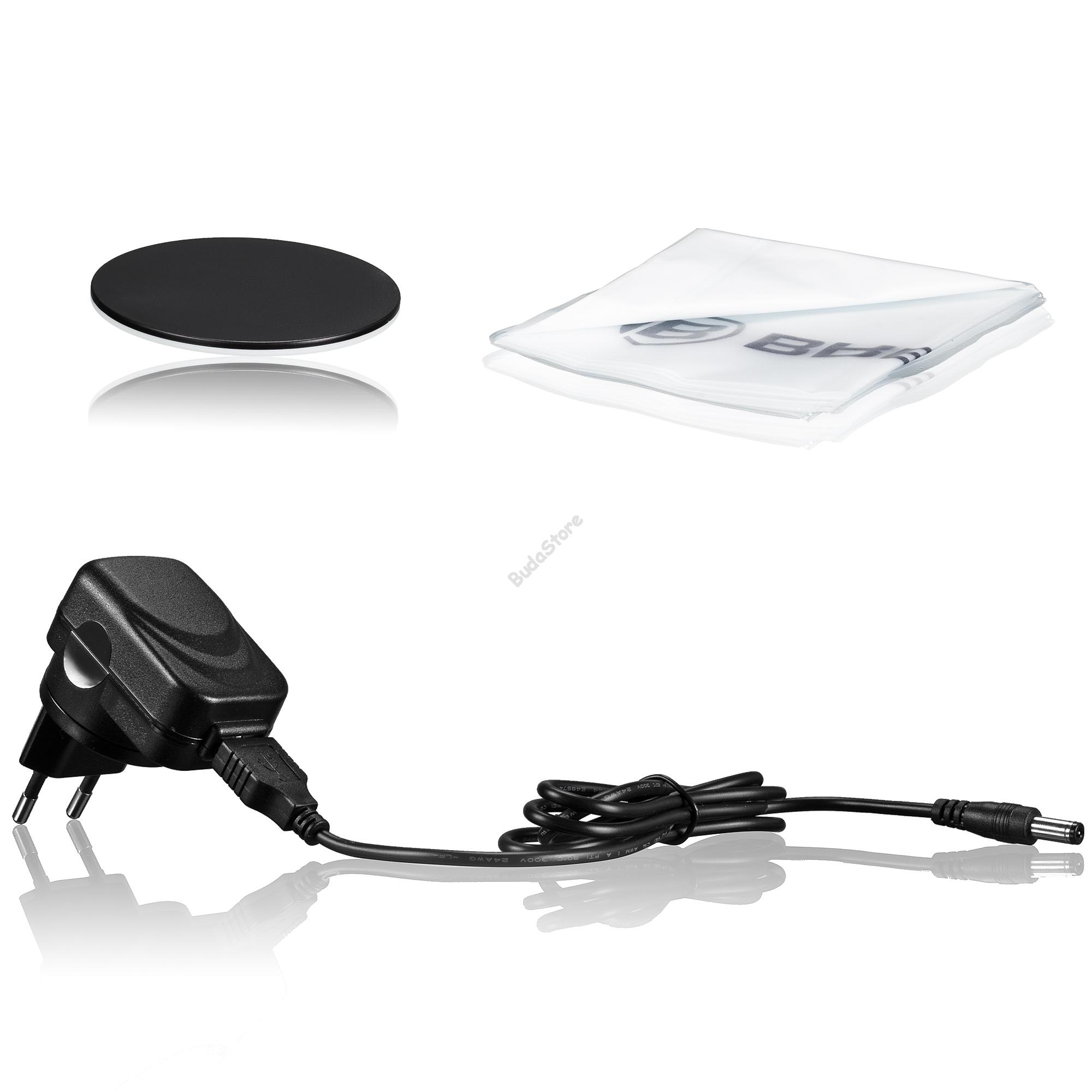

• Metal stand with LED illumination, power supply and battery compartment
• 2 eyepieces with rubber eyecups
• Glass object plate
• Plastic object plate (black/white)
• Dust cover
• Operating instructions
